Link analysis algorithms explained

This post aims to provide a lightweight introduction to page ranking algorithms so you have a better understanding of how to implement and use them in your spiders. There will be a follow up post soon detailing how to use these algorithms in your crawl.

PageRank

PageRank is perhaps the most well known page ranking algorithm. The PageRank algorithm uses the link structure of the web to calculate a score. This score provides insight into how relevant the page is and in our case can be used to guide the crawler. Many search engines use this score to influence search results.

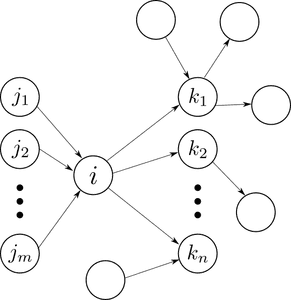

One possible way of coming up with PageRank is by modelling the surfing behavior of a user on the web graph. Imagine that at a given instant of time $latex t&bg=ffffff$ the surfer, $latex S&bg=ffffff$, is on page $latex i&bg=ffffff$. We denote this event as $latex S_t = i&bg=ffffff$. Page $latex i&bg=ffffff$ has $latex n_i&bg=ffffff$ outgoing and $latex m_i&bg=ffffff$ incoming links as depicted in the figure.

While on page $latex i&bg=ffffff$ the algorithm can do one of the following to continue navigating:

With probability $latex c&bg=ffffff$ follow randomly an outgoing link.
With probability $latex 1 - c&bg=ffffff$ select randomly an arbitrary page on the web. When this happens we say the the surfer has teleported to another page.

So what happens if a page has no outgoing links? It's reasonable to assume the user won't stick around, so it's assumed that the user will 'teleport', meaning they will visit another page through different means such as entering the address manually.

Now that we have a model of the user behavior let's calculate $latex P(S_t = i)&bg=ffffff$: the probability of being at page $latex i&bg=ffffff$ at time instant $latex t&bg=ffffff$. The total number of pages is $latex N&bg=ffffff$.

$latex Pleft(S_t = iright) = sum_{j=1}^N Pleft(S_{t} = i mid S_{t-1} = jright)Pleft(S_{t-1} = jright)&bg=ffffff$

Now, the probability of going from page $latex j&bg=ffffff$ to page $latex i&bg=ffffff&bg=ffffff$ is different depending on wether or not $latex j&bg=ffffff$ links to $latex i&bg=ffffff$ ($latex j rightarrow i&bg=ffffff$) or not ($latex j nrightarrow i&bg=ffffff$).

If $latex j rightarrow i&bg=ffffff$ then:

$latex Pleft(S_{t} = i mid S_{t-1} = jright) = c frac{1}{n_j} + (1 - c)frac{1}{N}&bg=ffffff$

If $latex j nrightarrow i&bg=ffffff$ but $latex n_j neq 0&bg=ffffff$ then the only possibility is that the user chooses to teleport and it lands on page $latex i&bg=ffffff$.

$latex Pleft(S_{t} = i mid S_{t-1}right) = (1 - c)frac{1}{N}&bg=ffffff$

If $latex j nrightarrow i&bg=ffffff$ and $latex n_j = 0&bg=ffffff$ then the only possibility is that the user teleports to page $latex i&bg=ffffff$.

$latex Pleft(S_{t} = i mid S_{t-1}right) = frac{1}{N}&bg=ffffff$

We have assumed uniform probabilities in two cases:

When following outgoing links we assume all links have equal probability of being visited.
When teleporting to another page we assume all pages have equal probability of being visited.

In the next section we'll remove this second assumption about teleporting in order to calculate personalized PageRank.

Using the formulas above, with some manipulation we obtain:

$latex Pleft(S_t = iright) = c sum_{j rightarrow i} frac{P(S_{t-1} = j)}{n_j} + frac{1}{N}left(1 - csum_{n_j neq 0}P(S_{t-1} = j)right)&bg=ffffff$

Finally, for convenience let's call $latex pi_i^t = Pleft(S_t = iright)&bg=ffffff$:

$latex pi_i^t = c sum_{j rightarrow i} frac{pi_j^{t-1}}{n_j} + frac{1}{N}left(1 - csum_{n_j neq 0}pi_j^{t-1}right)&bg=ffffff$

PageRank is defined as the limit of the above sequence:

$latex text{PageRank}(i) = pi_i = lim_{t to infty}pi_i^t&bg=ffffff$

In practice, however, PageRank is computed by iterating the above formula a finite number of times: either a fixed number or until changes in the PageRank score are low enough.

If we look at the formula for $latex pi_i^t&bg=ffffff$ we see that the PageRank of a page has two parts. One part depends on how many pages are linking to the page but the other part is distributed equally to all pages. This means that all pages are going to get at least:

$latex frac{1}{N}left(1 - csum_{n_j neq 0}pi_j^{t-1}right) geq frac{1 - c}{N}&bg=ffffff$

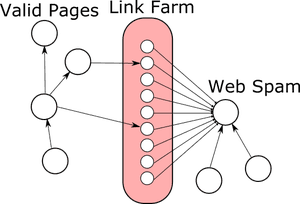

This gives an oportunity to link spammers to artificially increase the PageRank of any page they want by maintaing link farms, which are huge amounts of pages controlled by the spammer.

As PageRank will give all pages a minimum score, all of these pages will have some PageRank that can be redirected to the page the spammer wants to rise in search results.

Spammers will try to build backlinks to their pages by linking to their sites on pages they don't own. This is most common on blog comments and forums where content is accepted from users.

Trying to detect web spam is a never-ending war between search engines and spammers. To help filter out spam we can use Personalized PageRank which works by not assigning a free score to undeserving pages.

Personalized PageRank

Personalized PageRank is obtained very similar to PageRank but instead of a uniform teleporting probability, each page has its own probability $latex r_i&bg=ffffff$ of being teleported to irrespective of the originating page:

$latex Pleft(j mathbin{text{teleports to}} i mid j: text{teleports}right) = r_i&bg=ffffff$

The update equations are therefore:
$latex pi_i^t = c sum_{j rightarrow i} frac{pi_j^{t-1}}{n_j} + r_ileft(1 - csum_{n_j neq 0}pi_j^{t-1}right)&bg=ffffff$

Of course it must be that:

$latex sum_{i=1}^N r_i = 1&bg=ffffff$

As you can see plain PageRank is just a special case where $latex r_i = 1/N&bg=ffffff$.

There are several ways the score $latex r_i&bg=ffffff$ can be calculated. For example, it could be computed using some text classification algorithm on the page content. Alternatively, it could be set to 1 for some set of seeds pages and 0 for the rest of pages, in which case we get TrustRank.

Of course, there are ways to defeat this algorithm:

Good pages can link to spam pages.
Spam pages could manage to get good scores, for example, adding certain keywords to its content (content spamming).
Link farms can be improved by duplicating good pages but altering their links. An example would be mirrors of Wikipedia which add links to spam pages.

HITS

HITS (hyperlink-induced topic search) is another link analysis algorithm that assigns two scores: hub score and authority score. A page’s hub score is influenced by the authority scores of the pages linking to it, and vice versa. Twitter makes use of HITS to suggest users to follow.

The idea is to compute for each page a pair of numbers called the hub and authority scores. A page is considered a hub when it points to lot of pages with high authority, and page has high authority if it's pointed to by many hubs.

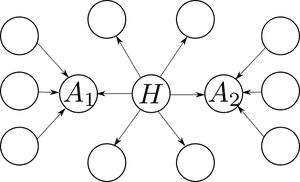

The following graph shows one several pages with one clear hub $latex H&bg=ffffff$ and two clear authorities $latex A_1&bg=ffffff$ and $latex A_2&bg=ffffff$.

Mathematically this is expressed as:

$latex h_i = sum_{j: i to j} a_j&bg=ffffff$
$latex a_i = sum_{j: j to i} h_j&bg=ffffff$

Where $latex h_i$ represents the hub score of page $latex i$ and $latex a_i&bg=ffffff$ represents its authority score.

Similar to PageRank, these equations are solved iteratively until they converge to the required precision. HITS was conceived as a ranking algorithm for user queries where the set of pages that were not relevant to the query were filtered out before computing HITS scores.

For the purposes of our crawler we make a compromise: authority scores are modulated with the topic specific score $latex r_i&bg=ffffff$ to give the following modified equations:

$latex h_i = sum_{j: i to j} r_j a_j&bg=ffffff$
$latex a_i = sum_{j: j to i} h_j&bg=ffffff$

As we can see totally irrelevant pages ($latex r_j = 0&bg=ffffff$) don't contribute back authority.

HITS is slightly more expensive to run than PageRank because it has to maintains two sets of scores and also propagates scores twice. However, it's particularly useful for crawling as it propagates scores back to the parent pages, providing a more accurate prediction of the strength of a link.
